| Payment Type: | L/C,T/T,Paypal,Money Gram |
|---|---|
| Incoterm: | FOB,CFR,CIF,EXW,FCA,CPT,CIP |
| Min. Order: | 1 Set/Sets |
| Delivery Time: | 20 Days |
Basic Info
Model No.: YH1224
Type: Engraving Router
Feed Mode: Mechanical
Controlling Mode: CNC
Certification: CE, ISO, SGS
Customized: Customized
Condition: New
Color: Customized
After-sales Service Provided: Engineers Available To Service Machinery Overseas
Cnc Router Machine: Advertising Cnc Router
Driver And Motor: Stepper (servo For Optional)
Control System: DSP Handle With USB Interface (Ncstudio/Mach3 For Optional)
Working Area: 1200*2400*120mm
Spindle Power: 2.2kw Water Cooling
XYZaxis Structure: Shaft Linear Bearings And Ball Screw
Work Table: Aluminum T-slot(vacuum Table For Optional)
Weight: 750KG
Power(W): 550w
Additional Info
Packaging: plywood case
Brand: YIHAI
Transportation: Ocean,Land,Air
Place of Origin: CHINA
Supply Ability: 200
Port: QINGDAO,TIANJIN,SHANGHAI
Product Description

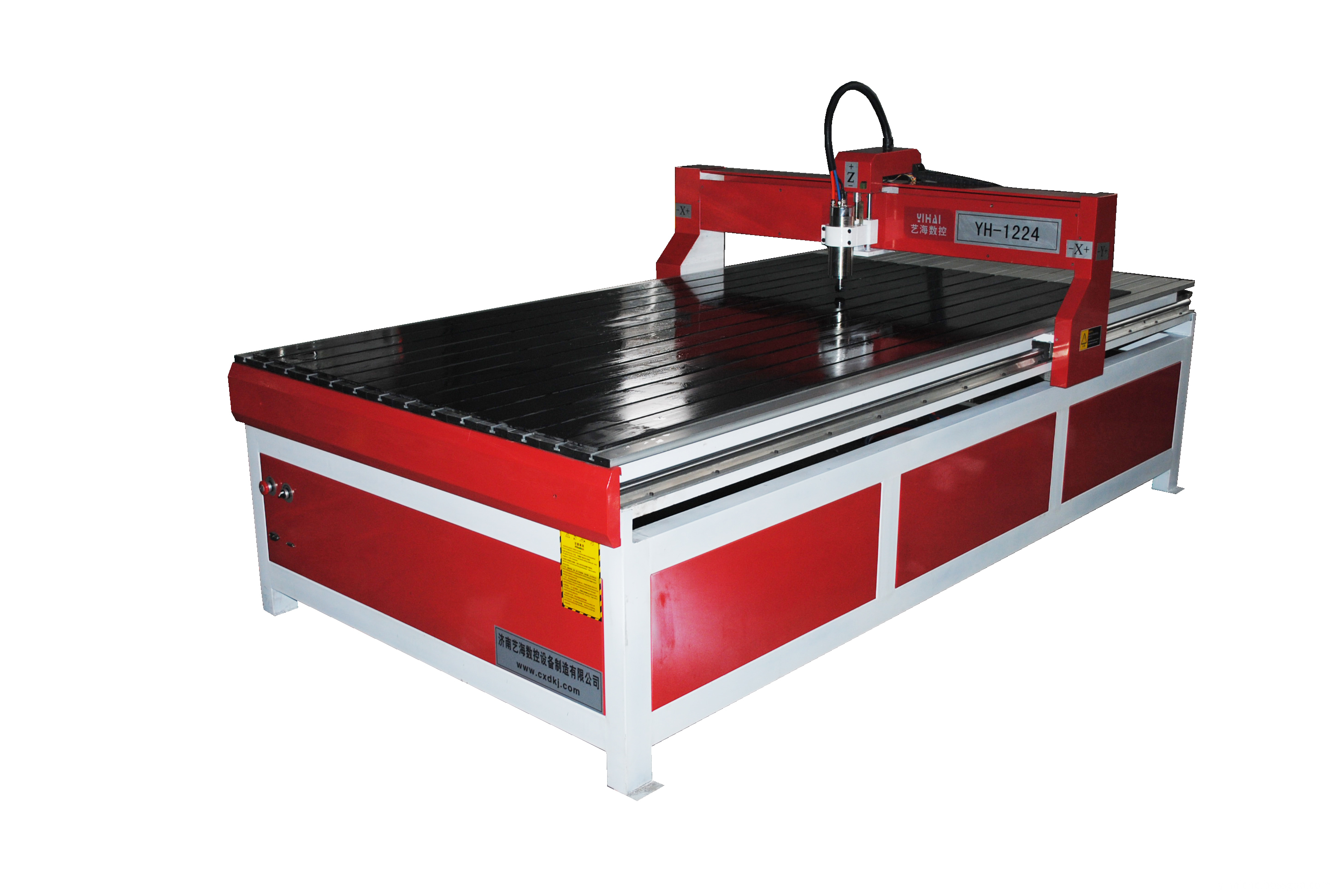

1224 cnc router series are high speed machine which is used for engraving/ carving/ cutting wood, MDF,plywood, bamboo, plastic, PVC, acrylic, aluminum, etc.
cnc router machine's features:
1. The lathe is founded by industrial pipe welding, box-type structure to ensure the high stability.
2. High quality X,Y,Z imported ball screw transmission system,imported square rails or round rails.
3. X,Y,Z high quality dust cover, effectively prevent dust come into the inside of machine.
4. Professional CNC control system,compatible with many CAM software such as Type3,artcam,mastercam,UG,pro-e etc.
cnc router Technical-parameters
|
NO. |
Discription |
Parameter |
|
1 |
X,Y,Z Working Area |
1200*2400*120mm |
|
2 |
Table Size |
3000*1750mm |
|
3 |
X,Y,Z Traveling Positioning Accuracy |
±0.03/300mm |
|
4 |
X,Y,Z repositioning Positioning Accuracy |
±0.05mm |
|
5 |
Lathe Structure |
Cast Aluminum |
|
6 |
X, Y Structure |
Shaft Linear Bearings and Ball Screw |
|
7 |
Z Structure |
Ball Screw |
|
8 |
Max.Consume power |
3.0Kw |
|
9 |
Max.Speed |
0-6000mm/min |
|
10 |
Max.Working Speed |
0-3000mm/min |
|
11 |
Spindle Power Motor |
2.2Kw water cooling spindle (HSD air cooling spindle for optional) |
|
12 |
Spindle Speed |
0-24000RPM |
|
13 |
Working Mode |
Stepper (servo motor for optional) |
|
14 |
Working Voltage |
AC220V/50/60Hz |
|
15 |
Command |
G code, *uoo, *mmg, *plt |
|
16 |
Operating System |
DSP handle with USB interface System (Mach 3 /Ncstudio for optional) |
|
17 |
Interface |
USB |
|
18 |
Flash Memory |
128M |
|
19 |
Collet |
ER16 |
|
20 |
X,Y Working Delicacy |
<0.01mm |
|
21 |
Software |
Type3 software, Wentai software, Artcam software |
|
22 |
Running circumstance |
Temperature: 0~45 |
|
23 |
Packing Size |
3150*1900*1650mm |
|
24 |
gross Weight |
850KG |
|
25 |
others (for optional) |
vacuum table /rotary system/ |
|
All parameters above subject to change without prior notice |
||
