Advertising CNC Woodworking Router

Payment Type: L/C,T/T,Money Gram
Incoterm: FOB,CFR,CIF,EXW,FCA,CPT,CIP
Min. Order: 1 Set/Sets
Delivery Time: 20 Days

Basic Info

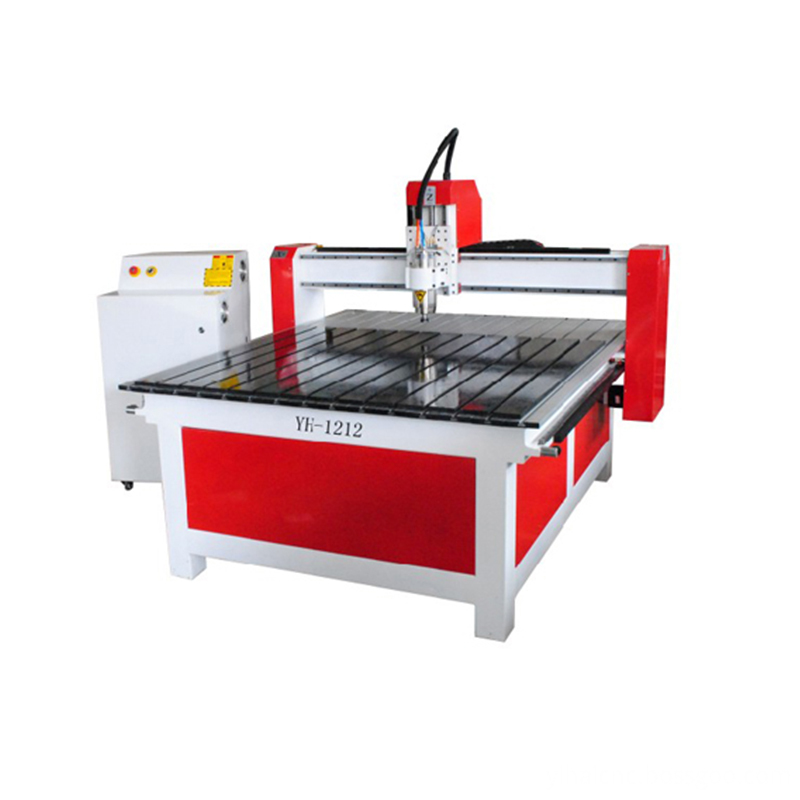

Model No.: YH-1212 Advertising Cnc Router

Type: Engraving Router

Feed Mode: Mechanical

Controlling Mode: CNC

Certification: CE, ISO, SGS

Customized: Customized

Condition: New

Color: Customized

After-sales Service Provided: Engineers Available To Service Machinery Overseas

X,Y,Z Working Area:: 1200x1200x120mm

Y Structure: Hiwin Rail Linear Bearings And Ball Screw From Taiwan

Driver System: Leadshine Stepper Motor And Drivers

Control System: DSP[Ncstudio]

Invert: Fuling Invert

Table: T-Slot (vacumm Table As Options )

Colour: As Your Requirement

Software Environmant: Windows 98/2000/XP


Additional Info


Packaging: Plywood cases which are suitable for shipping

Brand: YIHAI

Transportation: Ocean,Land,Air

Place of Origin: CHINA

Supply Ability: 200

Port: QINGDAO,TIANJIN


Product Description

High quality cnc advertising



Product Description



Product Description



1.Performance features:



1. Adopts 1.5kw/2.2kw water cooling spindle with very good performance , fit for long time producing in the processing line and easy maintain.

2.High performance transducer, high frequency

3.The whole lathe is thickening steel structure,scientific welded, upright and support plate, all using cast process that ensures the high stability.

4.The gantry structure, Y axis uses double motor driver system,X,Y-axis all uses Taiwan HIWIN square rail that make the machine driving smoothly with high precision.

5.Using high accurate slash pinion and rack transmission. The highest speed is 60m/min. It can clearly engrave the 1mm small word.

6.Use NC-studio control system,good compatibility, compatible type3 /artcam /Castmate /artcut/CAD /CAM and other design software. Can control the completion of multi-dimensional 3D processing, and can do fast, smooth, 3d processing, carving and cutting.



2.Technical Parameter :

Description

Parameter

Name

High quality and good price cnc advertising machine YH1212

X,Y,Z Working Area

1200x1200x120mm

X,Y,Z Traveling Positioning AccuraWD

±0.03/300mm

X,Y,Z repositioning Positioning AccuraWD

±0.02mm

Table Surface

T-Slot table

Frame

Cast Steel



X, Z Structure



Ball Screw from Taiwan

Y Structure

Hiwin Rail Linear Bearings and Ball Screw TBI from Taiwan

Max. power Consumption

0.8Kw

Max. Rapid Travel Rate

8000mm/min

Max. Working Speed

5000mm/min



Spindle Power Motor



1.5KW water cooling spindle

Spindle Speed

0-24000RPM

Drive Motors

Stepper system

Working Voltage

AC220V/50/60Hz

Command Language

G code

Operating System

DSP System

Interface

USB

Flash Memory

128M(U Disk)

Collet

ER11



X,Y Resolution

<0.01mm

Software Compatibility

Artcam software

(Support 2D and 3D)

Running Environment

Temperature: 0°C~45°C
Relative humidity: 30%~75%

Packing Size

2300*2100*1750mm

Net Weight

600KG

Gross Weight

750KG

Option

1.Rotary axis

2. Vacumm Table

4d Woodworking Cnc Router


Our Services

After-sale service



1.18 months guarantee for our machines except laser tube.



2. 24 hours technical support by email,fax or calling.



3. free training in our factory.Also we can dispatch our technician to customers place if customer agree to air ticket,food and hotel.



FAQ



1, How about the documents after shipment?

After shipment, we ll send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.



2, How long is the delivery time?

For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.



3, Do You Arrange Shipment For The Machines?

Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.



4, How is the packing?

Water-proof plastic film package with foam protection in each cornerSolid Seaworthy Wood Box Package with Steel BeltSave space as much as possible for container loading
