Cnc Machine Jinan 1325

Payment Type: L/C,T/T,Paypal,Money Gram
Incoterm: FOB,CFR,CIF,EXW,FCA,CPT,CIP
Min. Order: 1 Set/Sets
Delivery Time: 20 Days

Basic Info


Model No.: YH1325 CNC ROUTER

Type: Engraving Router

Feed Mode: Mechanical

Controlling Mode: CNC

Certification: CE, ISO, SGS

Customized: Customized

Condition: New

Color: Customized

Spindle: Water Or Air Cooling Spindle

Motor: Stepper Or Servo Motors

Inveter: Fuling Or Delta

Control Sys: DSP /NC /MACH3

Z Structure: Ball Screw

Table Face: T-slot Or Vacuum Table

X.Y Structure: Gear Wheel Transmission

Positioning Accuracy: 0.05mm

Max Engraving Speed: Greater Than 25m/min

Power(W): 4.5KW


Additional Info


Packaging: Wooden case / Plywood caes which are very strong and suitable for shipping

Brand: YIHAI

Transportation: Ocean,Land,Air

Place of Origin: CHINA

Supply Ability: 200

Port: QINGDAO,TIANJIN,SHNAGHAI


Product Description

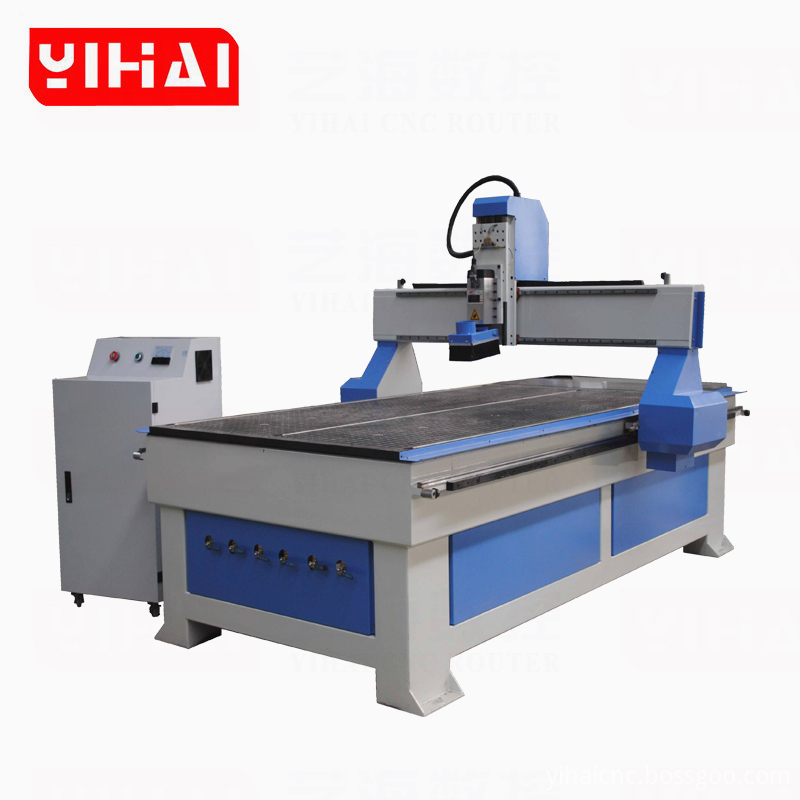

Vacuum table Wood cnc router making furniture industry






Product Description



1.Aliases:

3 axis cnc, 3 axis cnc router,  3 axis cnc engraving machine, 3 axis wood engraving machine, 3 axis wood carving machine, 3 axis wood cnc rotuer, 3  axis wood cnc router, 3 axis cnc machine,  woodworking series cnc routers , wood working machinery cnc, wood engraving machine cnc router,  etc..

2.Application Industries:

1.Furniture Industry
2.Decoration Industry
3.Musical Instrument Industry
4.Mould Industry
5.Craft Industry
6.Advertising Industry

3.Application material:

Wood panel,MDF,Plastic,PVC,Acrylic sheet,Glass,Plywood,Aluminum sheet.Solid wood,Alucobond,wave board,screen,calligraphy tablet and so on.

4.Technical Feature :


1Model: wood cnc router 1325

2working size: 1300*2500mm z axis: 200mm

3Spindle: Chinese 3.0 KW water cooling spindle or air cooling spindle

4 Motor: Chinese Leadshine stepper motor

5 control sys: DSP or Ncstudio or Mach3

6 Inverter: Chinese Fuling inverter

7 Guide: Taiwan Hiwin Square rail

8 Transmission:ball screw transmission

9 CE standard

10 table face: Vacuum table

5.Technical Parameter :


Model :  YH1325

X,Y,Z axis working area : 1300*2500*300mm

Whole structure :  Welded Steel gantry structure

Table surface : Vacuum table in zones or T-slot table

X,Y,Z structure : Taiwan HIWIN Square linear guide rail

X,Y structure:  Rack and pinion transmission,high speed and more stable; Y -double motor drive

Z structure:  Imported ball screw, high precision

Max. idling speed:  60m/min

Max. working speed:  45m/minRepositioning Accuracy  ±0.05mm

X Y Z working Accuracy:  < 0.02mm

Spindle:   9kw air-cooling spindle(option: water-cooling spindle)

Spindle rotating speed:  0-24000rpm/min

Tool magazine:  Linear ATC system, with 8pcs tool magazine

Diameter of tools:  3.175 -20

Collet size : ER 32

Operation language : G code (plt, mmg, uoo, bmp)

Driving system:  Japan Yaskawa servo motor and driver

Operating system : Taiwan SYNTEC control system

Working voltage:  AC380V / 220V, 3ph, 50-60Hz

Software:  Artcam / Powermill software


  High Quality Cnc Lathe


Cnc Wood Lathe Router3d Cnc Router for Wood

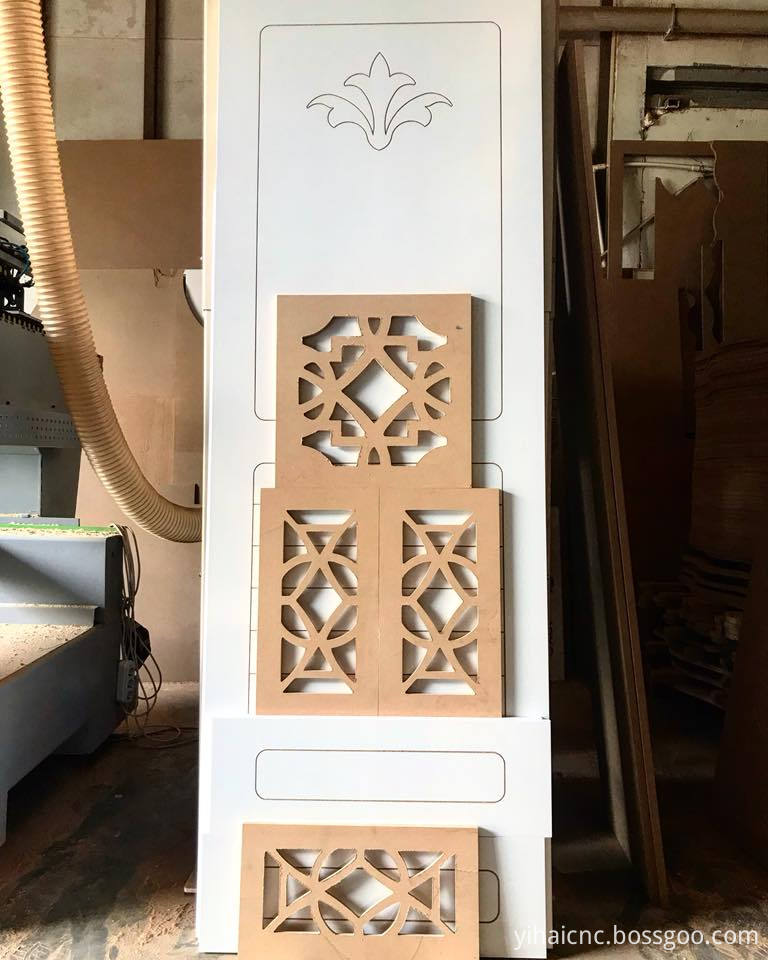

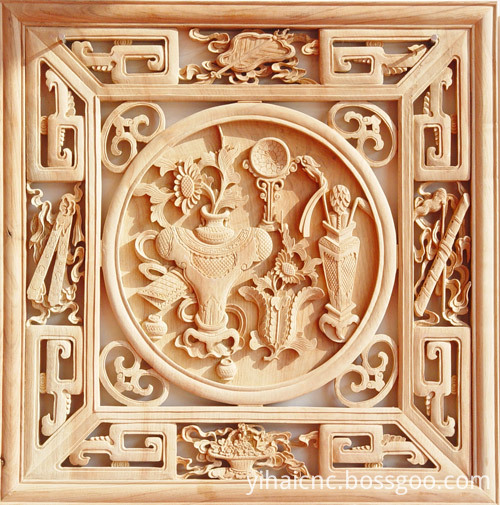

Samples

14

35763205_114989886071165_1582816197286559744_n

FAQ

1. What materials do you want to engrave or cut?

For different types of cnc routers apply to different materials (wood, stone, metal, foam etc.)



2. What's the max, size of the materials? (Length*Width*Thickness)

For it decides the working size of machine. (For example: YH-1325: 1300*2500*200mm)



Once you tell me all about this, then I`m able to recommend the most suitable machine and the best price for you. Or we can customize one for you.
