making vacuum membrane wood veneer pvc foil machine

Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm: FOB,CFR,CIF,EXW,FCA,CPT,CIP
Min. Order: 1 Set/Sets
Delivery Time: 20 Days

Basic Info


Type: Engraving Router

Feed Mode: Mechanical

Controlling Mode: CNC

Certification: CE, ISO, SGS, FDA

Customized: Customized

Condition: New

Color: Customized

After-sales Service Provided: Engineers Available To Service Machinery Overseas

Working Area: 2500x1300x100mm

Covering Material: PVC

Interior Worktable Size(mm): 2500/1120

Base Material Processing Thickness: 40

PVC Max. Processing Thicknes: 0.3

Working Pressure(Mpa): ≥-0.09

Overall Dimension(m): 5.4/1.4/1.4

Working Tables Number: 2


Additional Info


Packaging: Wooden case/Plywood

Brand: YIHAI

Transportation: Ocean,Land,Air

Place of Origin: CHINA

Supply Ability: 200

Port: QINGDAO


Product Description

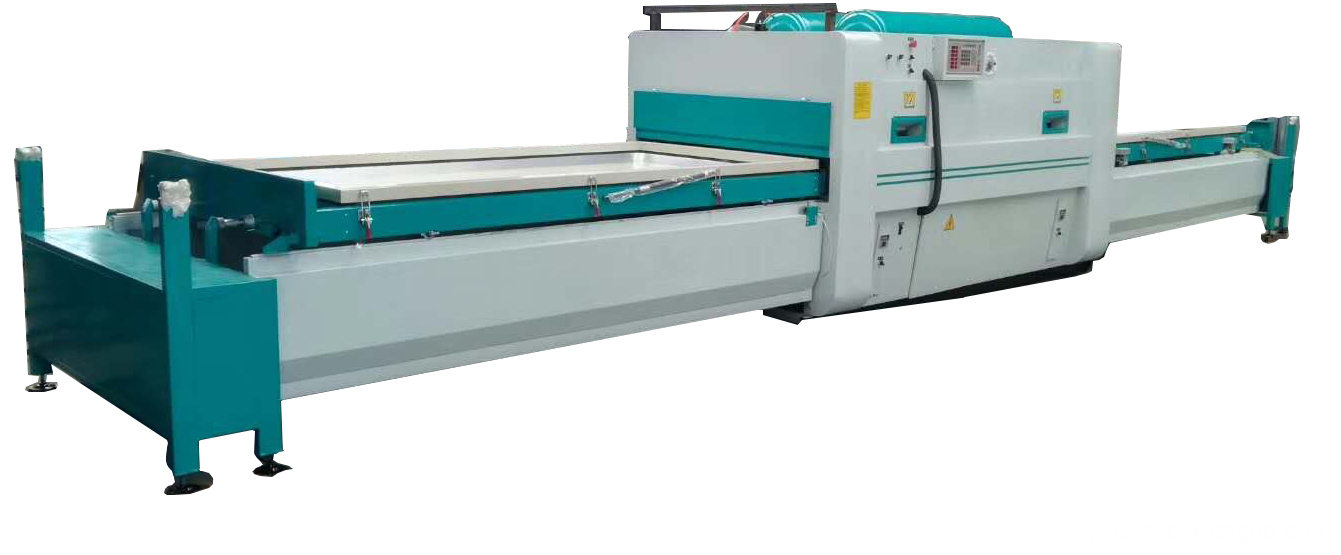

High quality Vacuum Membrane Press Machine



Specification

1. There are two removable work tables and an independent heating and laminating system, the work tables can be moved automatically or choose the manual operate . The fixed heating system is better to protect the heating lights from broken and the removable work tables can save the workers or laber.

2.There are two larger vacuum tanks which used to contain the air and make the higher vacuum presser.

3. It equips with the wind system to cool the work place and work piece quickly which improve the efficiency and the effective

4.The surface of work table is made of stainless steel being deal with oxidation treatment which is thermos table and corrosion resistant.

5.The vacuum pressure is displayed by the electric contract vacuum meter simple to control the vacuum pressure.

6.The temperature is control by RKC which makes the temperature setting and adjusted simply

7. The heating system chooses the air heating which place all the lamps in the aluminium box. This heating system makes even heating result. What is more all the lamps adopts the steel which is safe for long time shipment and durable on working.

8.All the temperature controller and the vacuum pressure controller can be settled and it can work as the settled digite.


Application

This kind of PVC laminating machine is used to laminate the COMMON PVC within 0.6mm thickness or high gloss PVC within 0.55mm thickness on the engraving wooden, MDF, HDF and bamboo boards. It is the best equipment for the door, the cabinet, the furniture, the handicraft article, the packing box and some other filed. At the same time this machine can laminate the wooden veneer on surface of boards with silicon sheet.

Technical-parameters



Model

YHZD-2P

YHZDA-1P

YHZD-2V

YHZDA-2PV

Covering Material

PVC

PVC

Veneer

PVC/Veneer

Interior Worktable Size(mm)

2500×1120

2500×1120

2500×1120

2500×1120

Maximum base material processing thickness(mm)

40

40

40

40

PVC Max. processing thickness(mm)

0.3

0.6



0.6

Working Pressure(Mpa)

≥-0.09

≥-0.09

≥-0.09

≥-0.09

Total Power (kw)

10

19

14.2

22

Overall dimension(m)

5.4×1.4×1.4

5.7×1.7×1.7

5.4×1.4×1.4

8.2×1.7×1.7

Weight(kg)

1200

1600

1400

2200

Working tables number

2

1

2

2

Table moving mode

Manual

Automatic

Automatic

Automatic

Price

(FOB Qingdao)

USD6100

USD7100

USD8800

USD10500

Remark





include one piece of silica gel plate




3d Vacuum Heat Press Machine

Warranty and service



1) The machine guarantee is 18 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.



Our main product

 CNC routers, CNC Engravers, laser engravers, plasma cutting machines, and knife cutting machines in China


Sales Condition:

Payment: 100% T/T or 30% pre T/T, 70% before delivery

Port of Loading: Qingdao, China

Delivery Time: within 30 days from the date of receiving the advanced payment

Min. Order Quantity: 1 set

Packing: vacuum cotton

Warranty: 1 year
