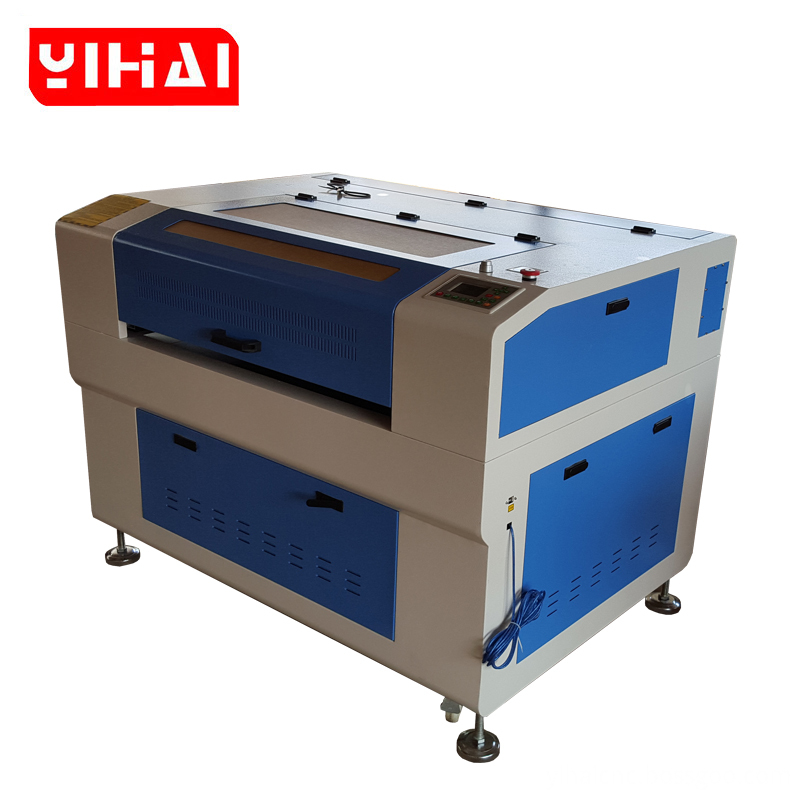

None metal CNC Laser cutting engraving machine

Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW,FCA,CPT,CIP
Min. Order: 1 Set/Sets
Delivery Time: 20 Days

Basic Info


Model No.: YH-1325

Application: Leather Industry, Carpentry, Printing & Packaging, Crafts Industr, Advertising Industry

Cooling System: Air Cooling

Driving System: DSP

Resetting Positioning Accuracy: 0.01mm

Certification: CE FDA


Additional Info


Packaging: Plywood case

Brand: YIHAI

Transportation: Ocean,Land,Air

Place of Origin: CHINA

Supply Ability: 200

Port: QINGDAO


Product Description



 Features of mini laser engraving machine:

1. Taiwan HIWIN square guide rails for XYZ-axis

2. sealed 40w/50w/60w CO2 laser tube .

3. Leadshine stepper motor and driver .

4.Belt transmission, also can be optional ball screw transmission.

5.laser head with red light positioning function

6.exhaust fan and air pump,can adsorb the smoke when engrave and cut.

7.water pump, it can  recycle the water and then cool the laser tube.

8.Ruida or Leetro control system in English,French,Russian,Portuguese,Turkey,German, with USB interface

9.honeycomb table.

Cnc Laser Cutterc



Soft Ware: Coredraw

Laser Power

60/80/100/150/180W

Supply Voltage

110/220V ,50/60Hz

Max width

400mmx400mm

Working table

Aluminum knife and honey comb

Up and down size

30mm

Table control mode

Manual/Electric

Max engraving Speed

1000mm/s

Max cutting speed

600mm/s

Locating Precision

<0.01mm

Min shaping character

Character 2x2mm ,Letter 1x1mm

Resolution

0.0125mm

Cutting thickness

0-15mm

Control Configuration

DSP

Data transfer Interface

USB

System Environment

WINDOWS XP/Win7/8

Graphic file format

BMP,PLT,AI,CDR,DXF

256 Color separation output

Support

360 degree slope engraving

Support

Off line working(Non-internet)

Support

Cooling Way

Water Cooling

Operating temperature

5C -35C

Water protecting sensor and alarm

Yes

Net Weight

80

Machine dimension

1150x600x600mm


HTB1ZWUlKFXXXXbvXpXXq6xXFXXXi
