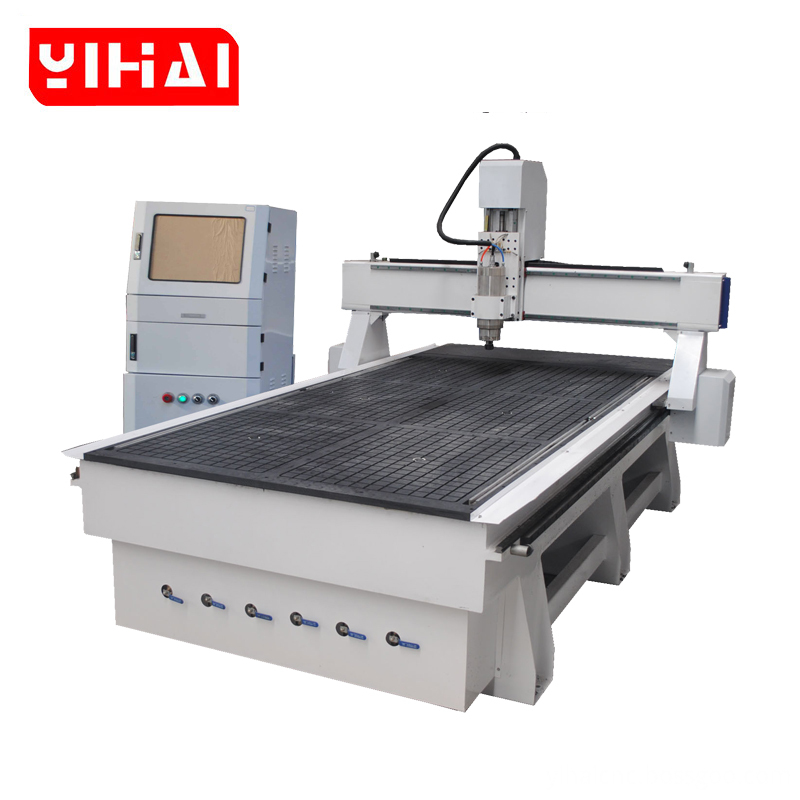

water cooling spindle mdf wood cnc router

Basic Info

Model No.: YH-1325 Wood Cnc Router

Type: Engraving Router

Feed Mode: Mechanical

Controlling Mode: CNC

Certification: CE, ISO, SGS

Customized: Customized

Condition: New

Color: Customized

After-sales Service Provided: Engineers Available To Service Machinery Overseas

Working Area: 1300*2500*200mm

Table Type: Vacuum Table & T-slot Table

Driving System: Servo Motors/Stepper Motor

Spindle Power: 4.5 Kw Water Cooling Spindle

Invert: Fuling Invert

Lead Rail System: HIWIN Linear Square Guide Rail

Transmission System: Gear Rack For XY Axis & Ballscrew For Z Axis

Working Voltage: AC380V 50Hz

Power(W): 4.5KW

Additional Info

Packaging: Plywood Case

Brand: YIHAI

Transportation: Ocean,Land,Air

Place of Origin: CHINA

Supply Ability: 200

Port: QINGDAO

Product Description

 High quality wood 4x8 ft CNC Router 1325, 3 Axis CNC Router, CNC Wood Router Machine

1.Application Industries:

1.Furniture Industry
2.Decoration Industry
3.Musical Instrument Industry
4.Mould Industry
5.Craft Industry
6.Advertising Industry

2.Application Material:

Wood panel,MDF,Plastic,PVC,Acrylic sheet,Glass,Plywood,Aluminum sheet.Solid wood,Alucobond,wave board,screen,calligraphy tablet and so on.

3.Technical Feature :

1.Three 4.5KW Air-cooling spindles,heavy Hard Steel Lath Body, keep the machine's working High stability.Whole machine is welded with seamless steel structure,dealing with Time-treatment, the stability is excellent, never to be deformed.
2. Three spindles can use three different tools for your three different designs' processing at the same time,
which is similar with Auto-tool changer CNC Machine Center with three tools.

3. Optional Control system:

(1) auto-tool changing function;

(2) Original Weihong Computer Control System, with Handle controller;

(3)Taiwan Syntec Control System, with vernier Handle controller

4. Vacuum System with : vacuum table with suction block, vacuum pump and tubes

5. Bigger gantry width can make sure every spindle's effective working area.

6. Heavy bistratal Side plates, which can keep large supporting power for the gantry's moving perfectly.

7. Independently PC Electric Control Box , with perfect wiring and free moving pulleys

8. Highprecision and bigger ball screw.  Original Bigger Taiwan HIWIN Straight Square Guide Rail.

To make sure the machine`s working high-speed and high-efficiency

1.One year quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge when problems happened during the warranty period.

2.Free training course at our plant.

3.We will provide the consumable parts at an agency price when you need replacement.

4.12 hours on line service each day, free technical support.

5.Machine has been adjusted before delivery , operation disk was included. manufactureing process.

In order to help you choose the most suitable machine, please try to reply my questions as below, thanks for your cooperation!

Q1: What about your material , wood or acrylic or?

Q2: The size of your processing material, length? Width and engraving/cutting thickness?

Q3: Do you want to cut or engrave your material? Or both cutting and engraving?

Q4: What machining effect do you want to get ? It would be better if you can send sample pictures to me .

Q5: The machine choose 220v or 110v or 380v?

Q6: What about your nearest sea port?
