water cooled cnc router spindle stepper motor

Payment Type: L/C,T/T,Paypal,Money Gram
Incoterm: FOB,CFR,CIF,EXW,FCA,CPT,CIP
Min. Order: 1 Set/Sets
Delivery Time: 20 Days

Basic Info


Model No.: YH-1325

Type: Engraving Router

Feed Mode: Mechanical

Controlling Mode: CNC

Certification: CE, ISO, SGS

Customized: Customized

Condition: New

Color: Customized

Machine Size: 2,150 X 3,150mm

Resolutions: 0.025mm

X-Y Movement: Rack And Pinion, Gear Drive/Taiwan

Max. Speed: 35,000mm/min

Max. Cutting Speed: 25,000mm/min

Spindle: 3.0kw(Water Cooling) /Italian HSD For You Opition

Spindle Speed: 24,000rpm

Working Voltage: AC380V/50-60Hz, 3-phase

Computer Interface: USB 2.2

Power(W): 5.5KW


Additional Info


Packaging: Export fumigation-free strong plywood case

Brand: YIHAI

Transportation: Ocean,Land,Air

Place of Origin: CHINA

Supply Ability: 200

Port: QINGDAO


Product Description

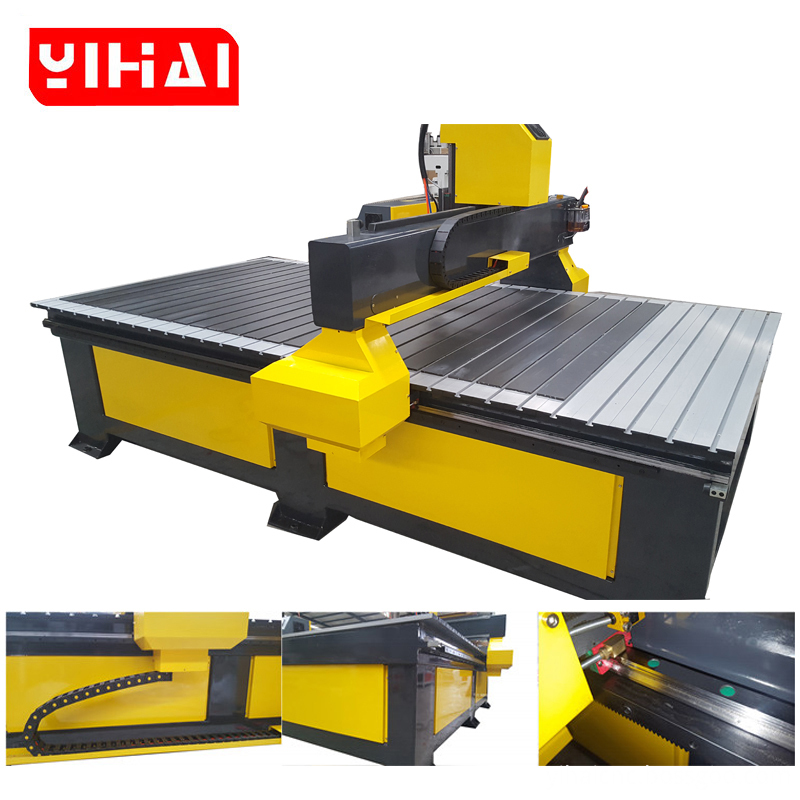

CNC ROUTER YH-1325






1.Machine model:YH-1325

2.4 axis rotary with 4 axis control system total XYZC four axis

3.Machine Application area

♥Furniture Industry

1) door

2) cabinets

3) tables

4) chairs

♥Advertising Industry

1) signage

2) Logo

3) Badges

4) display board

5) meeting sign board

6) billboard

♥Artwork and Decoration

 1)wood crafts

 2)gift box

 3)jewelry box





4. ADVANTAGES

♦  Overall seamless big steel tube structure. Processed by high tempering treatment and reliving of internal pressure, ensure the bathe more rigidty, reliability and durability.



 ♦  Top-quality world famous brand components. to make the machine high-precision and high-efficiencyTop quality spindle, Delta inverter, TBI ball screw, DSP control system and so on,



 ♦  Humanized and beautiful designing.

Beautiful appearances and high-quality paintingmake the machine beautiful and avoid rusting.



 ♦  Easy and safe operation and low maintenance cost.

With memory function in case of power off.



The only consumable part of the machine is the bit.

 Free training in our factory.



 ♦  Many optional configuration and OEM service available.

We produce various machines as per your request.

 Water Cooling Cnc Router



 5.YH1325 main technical parameters

The rotary 4 axis diameter have 100mm/200mm/300mm/350mm/500mm for you option



X-Y-Z axis working area

13,00 x 25,00 x 300mm

Machine size

1,350 x 2,550mm

Resolutions

0.025mm

X-Y movement

Rack and pinion, gear drive/Taiwan HIWIN brand

Z movement

Ball screw drive/Germany TBI brand

Guide

Linear20 square/Taiwan

Max. speed

35,000mm/min

Max. cutting speed

25,000mm/min

Spindle

Changsheng 3.0kw air cooling

Spindle speed

24,000rpm

Inverter power

3.5kw

Drive motors

Japan servo motor and driver or digital stepper

Working voltage

AC380V/50-60Hz, 3-phase

Command code

G code

Computer interface

USB 2.2

Collet

ER20-12.7mm,6mm,3.175mm

Software

Type3 Software/France

Controls

DSP A11E OR NC Studio controller

Packing dimensions

2260 x 3250 x 1800 mm,1450 kgs

Equipment included

a. Vacuum worktable

b. Auto cut adjusting device

c. Oil lubrication system

d. 15 sets tools for free
