Stone engraving Heavy type cnc router

Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm: FOB,CFR,CIF,EXW,FCA,CPT,CIP
Min. Order: 1 Set/Sets
Delivery Time: 20 Days

Basic Info


Model No.: YH-S1325

Function: Hollow out, Cutting, Line Engraving, Intaglio, Basso-relievo, Lettering

Application Material: Marble

Control: CNC

Engraving Head Speed Adjustability: Wide Adjustable Range

Certification: CE, ISO

Application: Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry

Customized: Customized

After-sales Service Provided: Engineers Available To Service Machinery Overseas

Model: YH-S1325

Table Size: 1300*2500*500mm

Spindle Power: 5.5KW

Spindle Speed: 0-24000rpm

Voltage: 380v,50Hz 3ph

Weight: 1500kg


Additional Info


Packaging: plywood case

Brand: YIHAI

Transportation: Ocean,Land,Air

Place of Origin: CHINA

Supply Ability: 200

Port: QINGDAO


Product Description

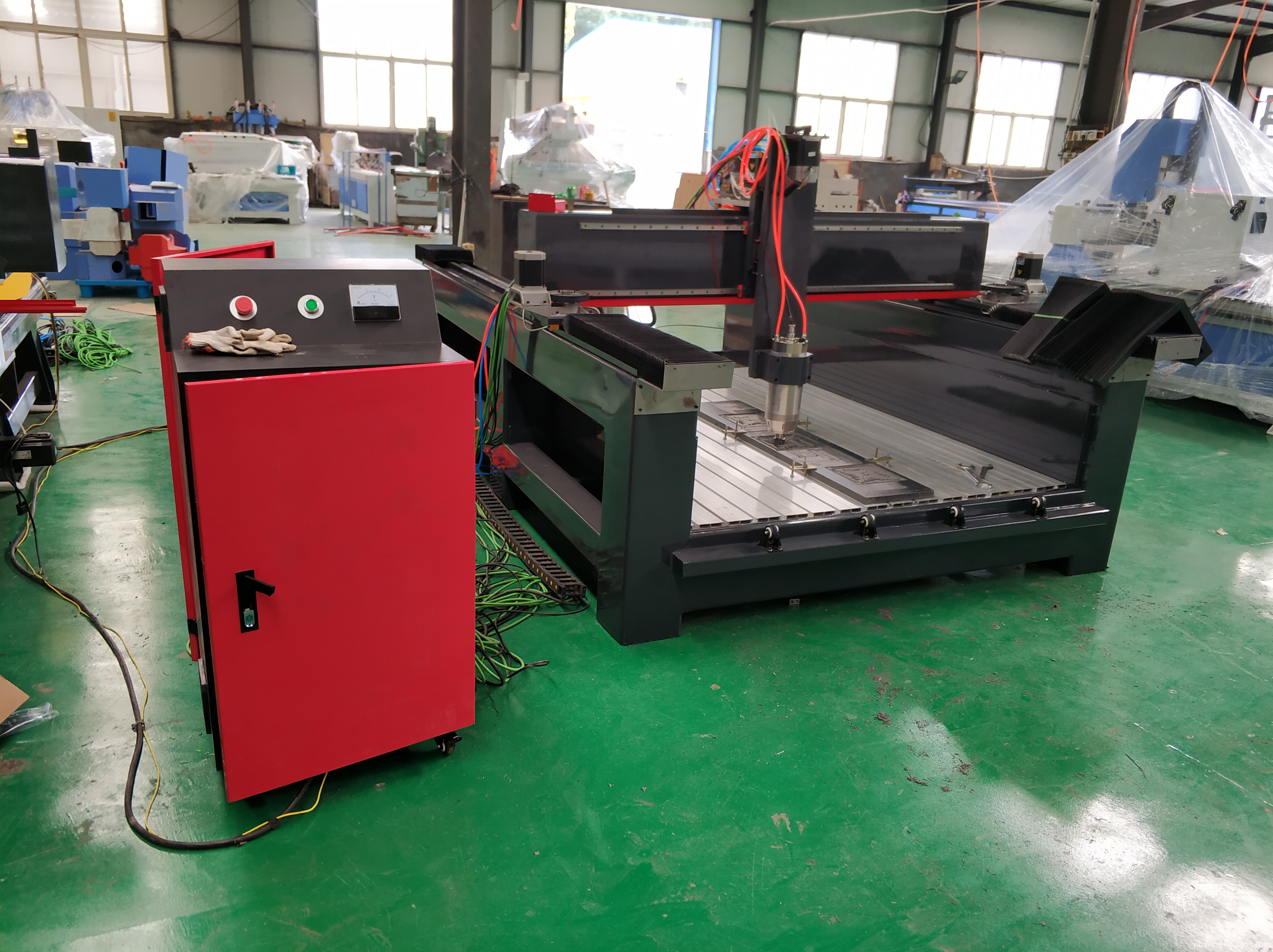

Heavy Duty Stone Cnc Router Stone Cutting Machine For Sale




FAQS: -----------------------------------------------------------------------------------------

1, How to pay to you ?

T/T inadvance or by ESCROW . We can accept 30% deposit , and balance paid to us before delivery machine to you .

2, How long is the delivery time?

For standard machines, it would be 15 days; For non-standard machines and customized machines according to clients specific requirements, it would be 30 days.

3, Do You Arrange Shipment For The Machines?

Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need toarrange shipment by themselves or their agents.

4,How about the documents after shipment?

After shipment, we ll send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.

5, How is the packing?

Water-proof plastic film package with foam protection in each corner

Solid Seaworthy Wood Box Package with Steel Belt

Save space as much as possible for container loading


Our service------------------------------------------------------------------------------------

Weestablish a global after-sales service system, 24 hour tracking customer.

[1] From purchasing date, whole life enjoy upgrading software free.

[2] From purchasing date , free get all kinds of technical training course at any time .

[3] Domesticmaintenance service point, less than 300 kilometers , we promise 24 hours door-to-door service andmaintenance,more than 300 kilometers, within 72 hours of maintenance.

[4] Foreign customers we reply within 10 hours , make maintenance service with 72 hours .




Model Features:


1 The heavy steel-base frame with tempering stress removal can ensure extremely rigid cutting platform and the durable solid-body unchanged in 10 years .
2 Adopting AMT linear guides of TAIWAN , provide a precise linear motion with minimal friction,ensure smooth and sturdy play-free motion, higher accuracy , so improving stability of working.
3 Spindle Refrigerator,can extend the life of the cutter and spindle motor.
4 Transmit by rack gear,assure high speed and productive.
5 Drivering by step motors can make sure precision and lower noise .
6 Aluminum T-slot table top for mechanical clamps,suitable for different size of sheet.
7 Flexible gantry can saves valuable floor space,offer incredible throughput and productivity.
8 Compatible with many different software like Type3,Artcam,Mastercam,UG, wentai, etc.
9 PC-Based Controller,provide User-friendly operator interface.

Tombstone Engraving Cnc Machine For Thailand Marke

Technical Parameters
SPECIFICATION CC-S1325B

Working Area

(X Axis)
1300mm/1500mm

Working Area

(Y Axis)
2500mm/3000mm
Clearance (Z Axis) 300/500mm
Spindle 4.5kw water cooled
Spindle Speed Adjustable 0-24,000 rpm
Tool Change Manual Tool-Change

Drive System

(X & Y Axes)
Helical Rack & Pinion

Drive System

(Z Axis)
Germany/Taiwan ball Screw
Drive Motors Four sets stepper motors
Inverter INVT/Delta
Yako Yako
Command G code
Cutter diameter 3.175-12.7mm
Maximum Idling Speed 40m/min
Precision 0.05mm
Table Top Aluminum T-slot table protected with PVC
Controller DSP handle
Power Requirements 3-phase 380V/50HZ or as request
Weight Approx 2000kg
Other Sizes

600*900mm

900*1500mm
1200*2400mm
1500*3000mm
2000*3000mm
3000*4000mm

Options

1. NC Studio controller
2. Added rotary axis
3. Automatic oil-injection system
4. Higher gantry
5. More spindles
6. Different power requirements, etc

Application Materials
1. Marble/stone: engraving on various granite, bluestone, marble, grit stone, ceramic tile, soapstone, etc.
2. Metal: light metal like aluminum and brass
3. Woodworking: wood, plastic, PVC, density board, acrylic, etc.




Sample show

3d Marble Cnc Router
