| Payment Type: | L/C,T/T,Money Gram |
|---|---|
| Incoterm: | FOB,CFR,CIF,EXW |
| Min. Order: | 1 Set/Sets |
| Delivery Time: | 20 Days |
Basic Info
Model No.: YH-2030
Type: Engraving Router
Spindle Layout: Vertical
Spindle Number: Single-Spindle
Feed Mode: Mechanical
Controlling Mode: CNC
Certification: CE, ISO
Customized: Customized
Condition: New
Color: Customized
After-sales Service Provided: Engineers Available To Service Machinery
XYZ Working Area: 2000*3000*200MM
XYZ Structure: Ball Screw
Table Size: 2180*3500mm
Resolution: 0.025mm
Operating System: Handle
Work Mode: Stepper
Main Axle Power Rate: 4.5KW
Compatible: G Code ;CAM.CAD.
Transmission System: Gear Rack From Taiwan
Additional Info
Packaging: wooden case
Brand: YIHAI
Transportation: Ocean,Land,Air
Place of Origin: CHINA
Supply Ability: 200
Port: QINGDAO,TIANJIN,SHANGHAI
Product Description
Technical parameters

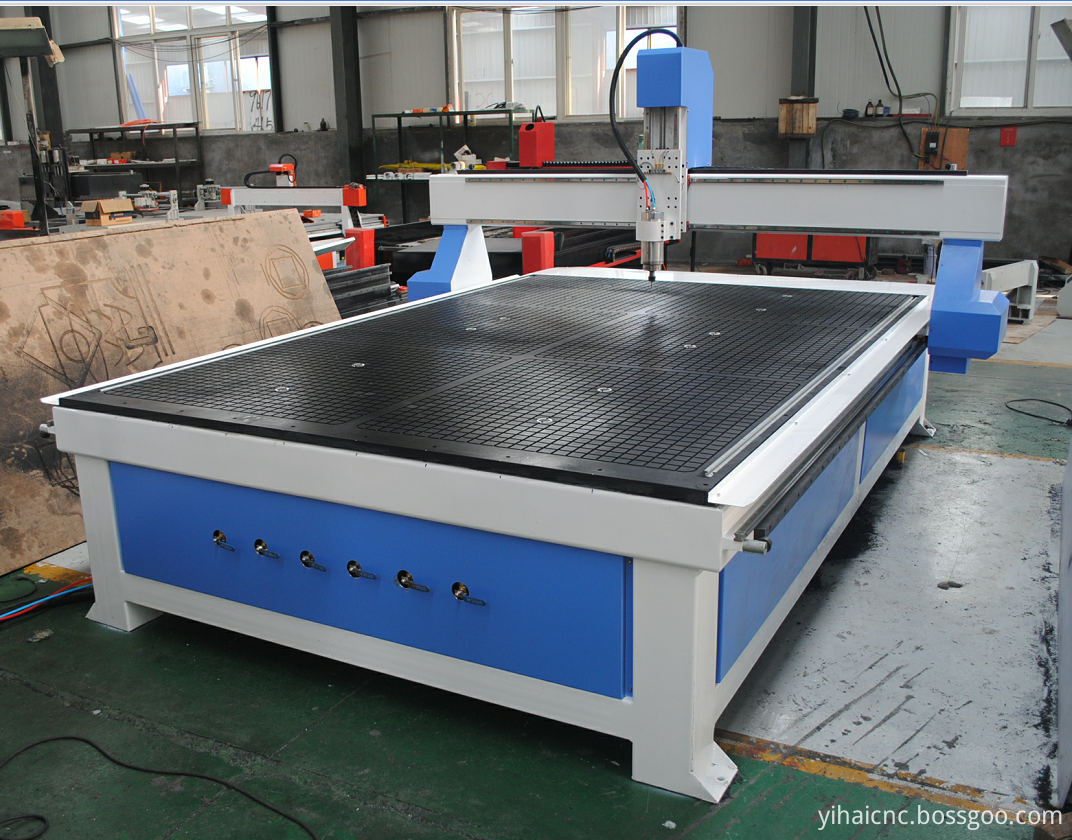

Model NO. : YH-2030B CNC Router
Table Size : 2140mm*3500mm
X, Y, Z Traveling Area : 2000mm*3000mm(or 4000mm)*200mm
Table Structure: Vacuum table
X Y Transmission: Rack Gear
Z Transmission : Germany NEFF Ball Screw
X Y Z Guide Way : Taiwan HIWIN Square Rail
Max. Spindle Power : 4.5KW Water Cooling
Max.Spindle Speed : 24000 rpm/min
Max.Traveling Speed : 45m/min
Max.Working Speed : 30m/min
Processing Accuracy: ±0.025mm
Reposition Accuracy : ≤0.025mm
Driving System : Stepper Motor
Command Language : HPGL, G Code
Control System: DSP
Working Voltage : AC380V, 50HZ
Net Weight/Gross Weight : 1500KGS/1600KGS
Package Dimension : 3700mm*2540mm*1900 mm
.
