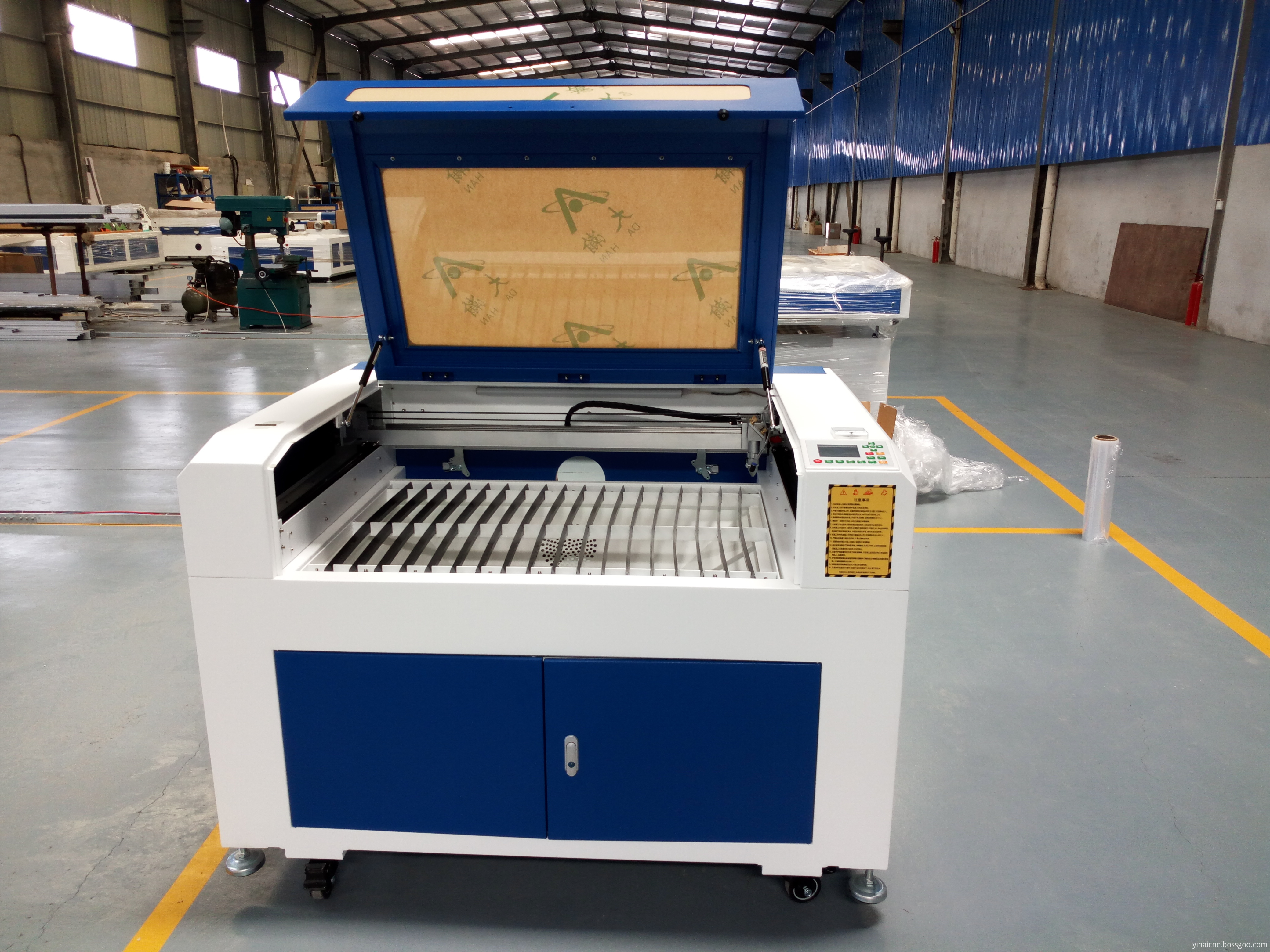

Professional Laser engraving machine

Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm: FOB,CFR,CIF,EXW,FCA,CPT,CIP
Min. Order: 1 Set/Sets
Delivery Time: 20 Days

Basic Info


Model No.: 1325

Application: Leather Industry, Domestic, Carpentry, Printing & Packaging, Construction Industry, Molds & Dies, Crafts Industr, Advertising Industry, Other

Cooling System: Water Cooling

Applicable Material: Other, Acrylic, Crytal, Glass, MDF, Paper, Plastic, Plexiglax, Plywood,, Wood

Working Area:: 1300mm*2500mm

Cooling Mode: CW-3000/CW-5200

Driving System And Motor: Stepper

Tube Power: W2/W8

Controlling Software: RD/Leetro System

Drive System: Brands Belt And HIWIN Linear Guider Rails

Working Voltage: AC380V/220V 50Hz-60HZ

Weight: 420kg

Power(W): 100KW


Additional Info


Packaging: plywood case

Brand: YIHAI

Transportation: Ocean,Land,Air

Place of Origin: CHINA

Supply Ability: 200

Port: QINGDAO,TIANJIN,SHANGHAI


Product Description

Professional router cnc laser




Laser Engraving Machine Key Features:

1>The Laser tube adopts Compulsive Water Cooling System, Water Chiller Can Control the temperature Automatically, It`s Alarm Device will Alarm if Short of Water, thus ensure laser tube a longer service time and high stability.

2> High Compatibility, Applicable for the Models Like PLT,BMP,DXF,DST,T100,etc.

3> LCD Control Panel in English

4>Equipped with Hydraulic protection,Exhaust dust and smoke device,the huff protection.

5>Optional Up & down adjustable worktable can Engrave and Cut Different Height Materials.

6>Comply With [CE & ISO] Certificates

7>Advanced DSP Digital Control technology and Integrated Frame Structure to ensure Work Stability.

8>Original Imported Straight Linear Guide Rail X. Y axis Makes the Machine Running on a high Speed and Precision.

9>Imported Reflected Lens and II-VI ZnSe focus lensin the Optical System Can greatly Reduce the heat loss.

10>High Quality CO2 Glass Sealed Laser tube Provides Strong Stable Laser beam mode and Longer Service Life.




cnc laser router :

#Working area : 600*900mm

#Laser power : 40/60W /80W (CO2 glass laser tube )

#Taiwan Hiwin square rails

#Lense and mirror from Singapore

#Leadshine motor and drivers

#Belts transportation (higher accuracy )

#Water pump

#Air pump

#red light

#Dust collector
#Leetro control system (best in china)

#blade table

#In the casing surface spray treatment, stainless steel box cover .

#Tools box



 Parameter



HTB12ckBwxSYBuNjSspjq6x73VXaa

IMG_20170512_111734


Product line:

Material  Cut Engrave
Acrylic, Plexiglass, Pmma, Perspex, Organic board, Double color plate Yes Yes
Plastic, PP, PET, PC, PMMA, PS, PES, PA, Plastic Foils&Films, Polycarbonate, polyester or polyimide membrane keyboards Yes Yes
Wood, Bamboo, Veneer, MDF, Balsa wood, Plywood Yes Yes
Leather, Pig leather, Cow Leather, Sheep leather Yes Yes
Textile, cotton, silk, felt, lace, synthetic & technical textiles, aramid, polyester, fleece Yes Yes

Foam & Filter, Mats Polyester (PES), Polyethylene (PE), Polyurethane (PUR)
Neopren®

Yes Yes
Paper, Cardboard, Chipboard, Press Board Yes Yes
Stone, Ceramic, Granite, Marble, Natural stone, Pebble stone, Slate No Yes

Rubber stamps, Synthetic & Silicone Rubber, Natural rubber, Microporous foam
Silicone rubber, Synthetic rubber

Yes Yes
Glass, Pressed glass, Float glass, Crystal glass, Mirror glass No Yes
