Portable heavy duty cnc router stone cutting machine

Payment Type:	L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm:	FOB,CFR,CIF,EXW,FCA,CPT,CIP
Min. Order:	1 Set/Sets
Delivery Time:	20 Days

Basic Info

Model No.: YH-1325

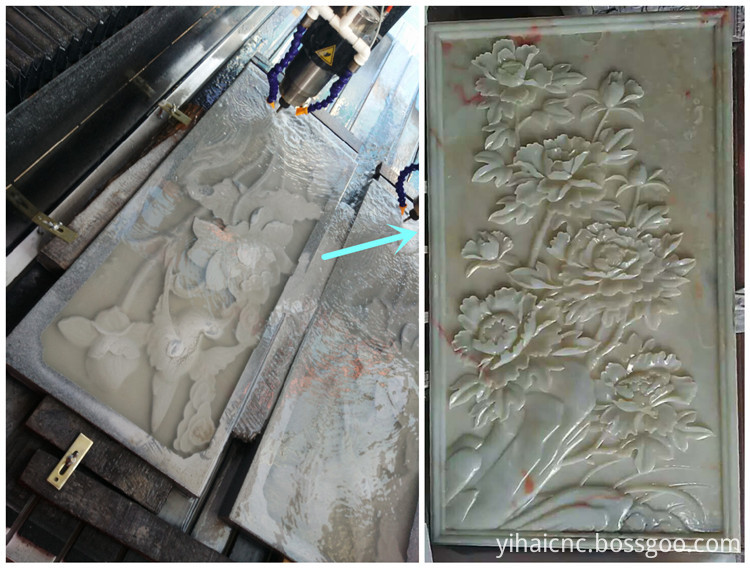

Function: Hollow out, Cutting, Line Engraving, Intaglio, Basso-relievo, Lettering

Application Material: Marble

Control: CNC

Engraving Head Speed Adjustability: Wide Adjustable Range

Certification: CE, ISO

Application: Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry

Customized: Customized

After-sales Service Provided: Engineers Available To Service Machinery Overseas

Working Area: 1300*2500*300mm

X,Y,Z Traveling Positioning Accuracy: ±0.01mm/300mm

Table Surface: T-slot Table

Frame: Welded Structure

X, Y,Z Structure: Gear Rack

Spindle Power: 5.5kw Water-cooling Spindle

Spindle Speed: 0-24000rpm

Working Voltage: AC380V/50/60HZ,1Phs

Operating System: DSP System (options: Ncstudio/Mach3 PC Softwar

Additional Info

Packaging: plywood case

Brand: YIHAI

Transportation: Ocean,Land,Air

Place of Origin: CHINA

Supply Ability: 200

Port: QINGDAO

Product Description

Portable China Manufacture cnc router stone cutting machine with CE approved YH-1325

PRODUCT FEATURES

1. High-strength body design and the Y-axis dual-motor drive, a more rational design, processing speed, easy maintenance, low failure.

2. Advanced digital processing system, powerful, user-friendly operation, selectable through the U disk or network to receive data.

3. Imported servo drives and motors, powerful, processing speed, smooth running, low noise.

4. High-power spindle, constant power, low noise, superior engraving and cutting force, greatly improving efficiency.

5. Imported high-precision linear rails, stable operation, high precision, stable support, extending the useful life of the machine.

6 Software compatibility, compatible TYPE3, Artcam, carved JD, Wentai carving, UG, MasterCAM, PowerMill and other CAD / CAM design software.

PRODUCT PARAMETER

Number	Description	Parameter
1	X,Y,Z Working Area	1300mmx2500mmx300mm
2	Table Size	330020501400MM
3	X,Y,Z Traveling Positioning Accuracy	±0.01mm/300mm
4	X,Y,Z Repositioning Accuracy	±0.01mm
5	Table Surface	T-slot Table
6	Frame	Welded Structure
7	X, Z Structure	Gear rack
8	Y Structure	Gear rack
9	Max. Power Consumption	0.8Kw
10	Max. Rapid Travel Rate	10000mm/min
11	Max. Working Speed	6000mm/min
12	Spindle Power	5.5kw water-cooling spindle
13	Spindle Speed	0-24000RPM
14	Drive Motors	Stepper System
15	Working Voltage	AC380V/50/60HZ,1Phs
16	Command Language	G code
17	Operating System	DSP System (options: Ncstudio/Mach3 PC Software)
18	Computer Interface	USB
19	Flash Memory	128M(U Disk)
20	Collet	ER32
21	X,Y Resolution	<0.01mm
22	Software Compatibility	Type3/UcancameV9 software (Option: Artcam software)
23	Running Environment Temperature	0 - 45 Centigrade
24	Relative Humidity	30% - 75%
25	Packing Size	349022101870mm
26	G.W.	1650kgs
