mini cnc router unitech cnc router

Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm: FOB,CFR,CIF,EXW,FCA,CPT,CIP
Min. Order: 1 Set/Sets
Delivery Time: 20 Days

Basic Info


Model No.: YH-6090

Type: Engraving Router

Feed Mode: Mechanical

Controlling Mode: CNC

Certification: CE, ISO, SGS

Customized: Customized

Condition: New

Color: Customized

After-sales Service Provided: Engineers Available To Service Machinery Overseas

Engraving Machin: Woodworking Machine

Table Hold: T-slot

Driver: Leadshine M860

Working Area: 600*900*100 Mm

Motor Type: Stepper Motor

Weight: 200KG

Power(W): 1.5KW


Additional Info


Packaging: strong plywood case

Brand: YIHAI

Transportation: Ocean,Land,Air

Place of Origin: CHINA

Supply Ability: 200

Port: QINGDAO


Product Description

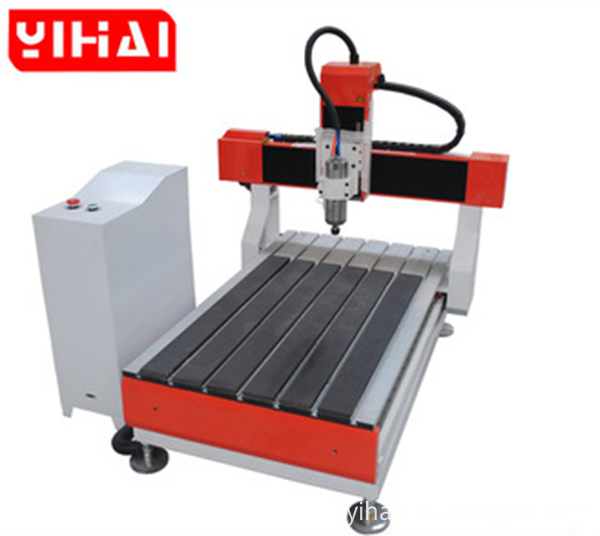

Mini CNC Router YH6090


The CNC YH6090 was based on the structure of CNC YH1325, it has bigger table size 90x90cm and we have implemented many features to make the unit more stable and precise for milling and engraving.

Some major changes are:
1) Size frames thickness was increased so that it is more rigid,
2) Size frames shape was changed to account for the center of gravity of the spindle weight, to achieve stable z-axis movement,
3) Y-axis chain rail was installed to the bottom of the table, to avoid from dust and better protection.



Please contact us before purchase

We will calculate the DHL ship fee to your address.


*BRAND NEW CNC ROUTER

*NEW SPINDLE & STEPPER MOTOR

*WITH 6 LIMIT SWITCHES INSTALLED

*80MM Z Axis, SUITABLE FOR LARGE OBJECT

*3A HIGH CURRENT STEPPING MOTOR, HIGH SPEED AND STABILITY



YH6090 MINI CNC ROUTER is  suitable for Industry, Technology Research, Advertising  Design, Arts Creation, Teaching, Student Project and  Hobby Purposes.

MINI YH6090 is a high precision CNC machine and designd for processing  Industrial or Hobby Prototype Building, Building Model  Making, PCB, Adverstising Signs, Artwork, Crafts,  Aircraft Models,RC Model parts,etc. Small size CNC can  let you work in home or office.+



1 Year Warranty for Mechanical Parts

Specification
Effective Traveling Range 600(X) X 600(Y) X80(Z) mm
Machine Dimension 610(X)*640(Y)*440(Z) mm
Working Table3 600(X)*6000(Y)*80(Z) mm
Frame Material  Aluminum Alloy 6061/ 6063
Driving Core X:  1605 ball screws
  Y:  1605 ball screws
  Z:  1605 ball screws
Sliding Core X: Dia. 16mm
  Y: Dia. 16mm
  Z: Dia. 12mm
Limit Switch X, Y, Z  (2 switch per axis)
Stepping Motor 57 2 phase 3A 1.8 Degree (Brand New)
Spindle Motor 300W High Speed motor (Brand New)
Principal Axis Collet ER11 / 3.175mm
Spindle Speed PWM up to 12000RPM
Repeatability  0.05mm
Max No Loading speed (X, Y, Z) 2500mm / min
Spindle Precision (Beat error) 0.01 - 0.04mm
Carving Code G code/TAB files/nc file/NCC files
PC connection Parallel Port
OS Win2000 XP (Support Mach2 Mach3)
Carving Speed Depend on material
Weight5 50KG

CNC Controller
Input 110V to 220V (Switch interchange, we will  changed in factory according to your country)
Front Panel Switch  Emergency Stop
  Limit Switch Enable/Disable
  Power ON/ OFF
  Spindle Speed control
Limit Switch Connector Yes, support up to 6 limit switch
Motor Connector Paraellel Port
Motor Connector X, Y, Z, Spindle Motor
Support Control Software Mach3,EMC2 (Setting on Mach3 will be provided  after purchase)
The software is not include, it is a shareware that you can download / purchase from
Thermal Control 24V Fan for cooling
Regulated Power Supply Spindle Motor: 800W water cooling spindle, drive by JY800 (Variable frequency Driver)
  Stepper Controller: 24V 10A 240W
Weight: 200Kg



 Cnc Laser Cutting Machine
First Installation in 45 minutes:
1.Assembling CNC (Separated to 2 part for shipping,  just screw up 4 screws then can be OK)

and locating the CNC machine on stable  desk.

2.Make sure that your computer has a on-board  parallel port output.

3. Install control software and Drive such as the  MACH 3 or EMC2 (You can search easy in Google)

4.Connect the X, Y, Z and Limit Switch socket from  machine to CNC controller, connect power cord (We  have already set the right voltage according your  country).  Connect parallel port from

5. Install the water cooling system and fill with coolant water.

6. Follow our instruction on the MACH3 setting.



 P.S:

There will have two kinds of control software for you reference

One is popular Mach3 and another is stable Ncstudio system.

Before you place the order please contact us and let us know which type softare you prefer



Package include the following items:

1) CNC YH6090 machine, FULL

2) SOFTWARE MACH3

3) Std accessory - 5pcs drill bits and wrench

Mini 6090 Router



 Payment

  • We accept Paypal, credit card through Paypal. Buyer may need to pay for import tax depend on your country's custom. You can ask us for more detail.

 Shipping

  • We ship to international and item will be shipped by airmail from China
  • Items are shipped within 2-3 business day after receive cleared payment.
  • An additional USD 8 for insurance
  • Most item will arrive within 8-14 business days. It depend on your location. In some case, ship to some countries will take over 3 weeks, especially  brazil, Italy and France .

After machine finished , our engineer will detailed inspection and evaluation.

We will reply you within 24hours
