Full Automatic Door Making CNC Wood Carving Machine

Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm: FOB,CFR,CIF,EXW,FCA
Min. Order: 1 Set/Sets
Delivery Time: 20 Days

Basic Info


Model No.: M25-B

Type: Engraving Router

Feed Mode: Mechanical

Controlling Mode: CNC

Certification: CE, ISO, SGS, FDA

Customized: Customized

Condition: New

Color: Customized

After-sales Service Provided: Engineers Available To Service Machinery Overseas

X Y Zworking Area: 1300mmx2500mmx200mm

Spindle Power: 3.0KW

Spindle Speed: 24000r/min

Cooling Type: Water Cooling

Contorl System: DSP Or Official NCstudio

Table Type: Vacuum Table

Guider: Linear Square Rails

Command Code: G Code,u00,mmg,plt

Driver: Leadshine


Additional Info


Packaging: Plywood case

Brand: YIHAI

Transportation: Ocean,Land,Air

Place of Origin: CHINA

Supply Ability: 200

Port: QINGDAO,TIANJIN


Product Description

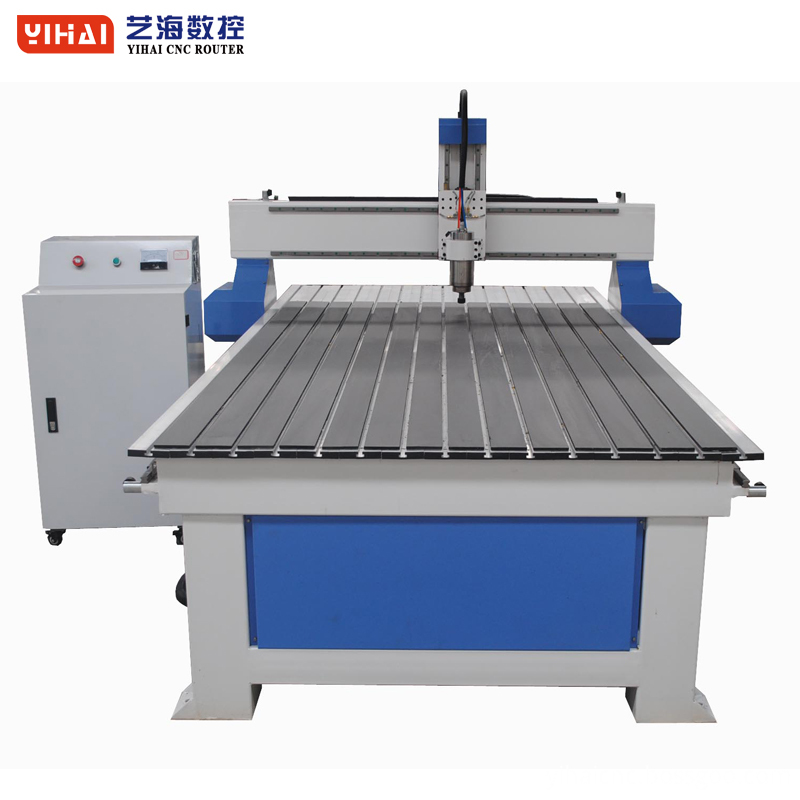

High precision Vaccum Table 1325 CNC Router







Technical Feature :

1.Three 4.5KW Air-cooling spindles,heavy Hard Steel Lath Body, keep the machine's working High stability.Whole machine is welded with seamless steel structure,dealing with Time-treatment, the stability is excellent, never to be deformed.
2. Three spindles can use three different tools for your three different designs' processing at the same time,
which is similar with Auto-tool changer CNC Machine Center with three tools.

3. Optional Control system:

(1) auto-tool changing function;

(2) Original Weihong Computer Control System, with Handle controller;

(3)Taiwan Syntec Control System, with vernier Handle controller

4. Vacuum System with : vacuum table with suction block, vacuum pump and tubes

5. Bigger gantry width can make sure every spindle's effective working area.

6. Heavy bistratal Side plates, which can keep large supporting power for the gantry's moving perfectly.

7. Independently PC Electric Control Box , with perfect wiring and free moving pulleys

8. Highprecision and bigger ball screw.  Original Bigger Taiwan HIWIN Straight Square Guide Rail.

To make sure the machine`s working high-speed and high-efficiency


Product Description

Table size (L*W*H)(mm)

3050x1500x750

X,Y,Z Working area(mm)

1300*2500*200

Table Structure

T-slot table and vacuum table/Aluminum table



Transmission System

X,Y axis Helical rack and pinion

Z axis German technology ball screw

Lead rail system

Taiwan linear square guide rail

Spindle Power(kw)

6

Spindle rotating Speed(rpm/min)

0-180000

Spindle cooling Type

Air cooling

Collect diameter(mm)

3/4/6/12.7

Motor and driver

Yaskawa/Delta/Stepper

Oil injection system

Manual/Automatic

Control System

NCStudio / DSP RichAuto-A11

Command Code

G code

Compatible CAD/CAM Soft wares

Ucancam V8 / Type3 / Artcam

Working Voltage

AC380V 60Hz

Net Weight(kg)

1300

Packing Size(L*W*H) (mm)

3250x2150x1950

Optional

Rotary axis for 3D carving

 Full Automatic Door Carving Machine



Samples

 HTB1Dr.NJ1OSBuNjy0Fdq6zDnVXa5
