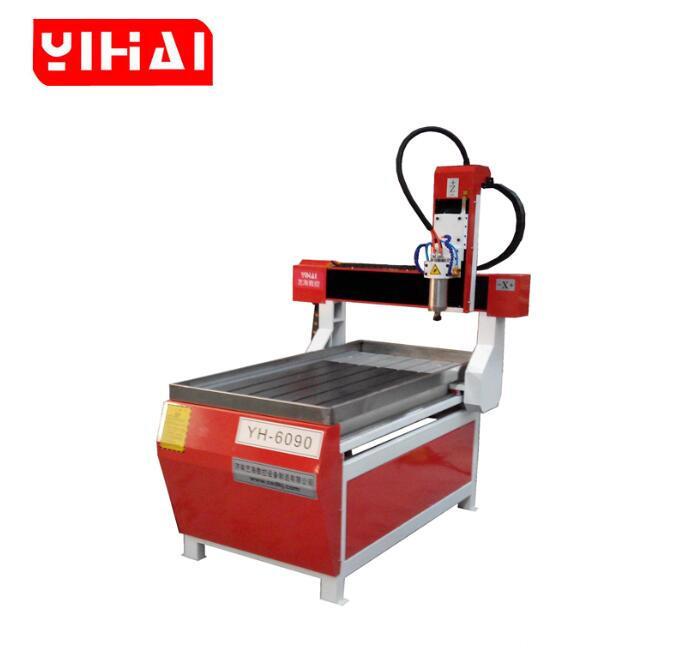

CE Approved Mini CNC Router Lathe Machine

Payment Type: L/C,T/T,D/P,Paypal,Money Gram
Incoterm: FOB,CFR,CIF,EXW,FCA,CPT,CIP
Min. Order: 1 Set/Sets
Delivery Time: 20 Days

Basic Info


Model No.: YH-6090 3D Mini Desktop Cnc Router

Type: Engraving Router

Feed Mode: Mechanical

Controlling Mode: CNC

Certification: CE, ISO, SGS

Customized: Customized

Condition: New

Color: Customized

Working Area(mm): 600*900*120mm

Spindle: 1.5 2.2 Kw Water Cooling Spindle [Air Cooling Spindle]

Transmission: X, Y Gear Rack And Z Axis By Ball Screw

Motor: Stepper Motor[Servo Motor]

Guide Rail: Taiwan Hiwin Square Linear Guide Rail

Inverter: Fuling/Sunfar

Control System: NC-studieo /DSP Offline Control System

Working Voltage: AC220V

Software Environmant: Windows 98/2000/XP

Weight: 370KGS


Additional Info


Packaging: Plywood case which are very strong and suitable for shipping

Brand: YIHAI

Transportation: Ocean,Land,Air

Place of Origin: CHINA

Supply Ability: 200

Port: QINGDAO,TIANJIN


Product Description

Product Description

 1.Standard configuration of 6090 model:

CE standard,  effective working area;

cast steel square tube structure;

ball screw transmission;

Mach3 control system/Ncstudio /DSP , stepper motor;

1.5KW water cooled spindle, 1.5KW inverter;

Leadshine driver;

Round orbit, including Type3 software.

2.Technical parameters

Model

YH6090

Machine body

whole cast iron

Working area(mm)



600×900mm

Z-axis working area

200mm

Table size

720*1150mm

X/Y/Z movement

Precision ball screw/Germany

Guide linear

20 square rail/Taiwan

Cut thickness of material

0-10cm

Max.Speed

6000mm/min

Working speed

0-4000mm/min

Machining pass

5mm

Mechanical precision

0.015mm

Software

Type3,Artcut,Artcam software

Power source

AC 220V/50-60Hz

Driver type

Stepper motor

Spindle power

2.2KW variable speed,water-cooled

Spindle speed

0-24,000rpm

Tool diameter

1-12.7mm

Collet

Collet ER20 12mm, 12.7mm, 6mm, and 3.175mm

Control system

DSP0501,128M

Command

HPGL.G code,u00,mmg,plt

Rotary

With rotary device

   mini cnc engraving machine



Our Services

 1.Kindly Tips:

All the parts of machine can do some changes to meet your requirements.

1.motor (step motor or servo motor optional)

2.spindle (air cooled or water-cooled optional )

3.guide rail (linear guide rail or square linear guide optional )

4.the table of the machine (Vacuum table,T-shot table,Combination of T-shot &Vacuum table,Normal table,Table moving)

2.Payment terms:

1 You can pay 30% by T/T(bank transfer)   in  advance ,when we finished the machine ready for shipping ,you pay the  70% left.

2 You can pay by  Escrow  by  Alibaba

3.Delivery time:

within10working  days.If we see the scanner of  bank  receipt /confirmation by email ,we  will take into producing ,ad ship it to you .

4.Our technical support and quality assurance as follows:

1.warranty:1 years

2.replace all accessories during the waranty period for free(except wearing parts and artificial damage)

3.Provide 24 th technology online support
