4-axis CNC Router With Auto Tool Sensor

Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm: FOB,CFR,CIF,EXW,FCA,CPT,CIP
Min. Order: 1 Set/Sets
Delivery Time: 20 Days

Basic Info


Model No.: Cnc Router M25-A

Type: Engraving Router

Feed Mode: Mechanical

Controlling Mode: CNC

Certification: CE, ISO, SGS, FDA

Customized: Customized

Condition: New

Color: Customized

After-sales Service Provided: Engineers Available To Service Machinery Overseas

X*Y*Z Working Area: 1300*2500*250mm

Spindle: 3 Kw Air Cooling Spindle

Spindle Speed: 0-24000rpm

About Drive Systems: Stepper Motor

Control System: NcStudio Control System

Working Table: Vacuum Table + Tslot

Transmission System: Gears Rack Drive For X Y -axis, Lead Screw

Software: Ucancam / ArtCam/TYPE3

Transmission: Gear Rack


Additional Info


Packaging: Strong Plywood Case

Brand: YIHAI

Transportation: Ocean,Land,Air

Place of Origin: CHINA

Supply Ability: 200

Port: QINGDAO,SHANGHAI,NINGBO


Product Description

Product Description


X Y Z Working Area : 1300*2500*300mm

Control System : Ncstudio Control System

Voltage:  AC 380V 50/60Hz, three phase

Whole Structure : Welded Steel Gantry Structure

Driver and Motor: Leadshine Driver and Stepper Motor

Table Surface : Vacuum Table in Zones or T-slot Table

Guide Rail : Taiwan HIWIN Square Linear Guide Rail

Spindle Motor : 3kw Water Cooling Spindle 0-18000rpm

Driving Method: Gears Rack drive for X Y -axis, Lead Screw Drive for Z-axis

Compatible Software: Type3/Artcam/Castmate/Coreldraw/Auto CAD and other CAM/CAD softwares


Main Features

1) Well-known 3 kw water cooling spindle, high precision, long life time, steady working, easy to start up.

2) Thicken square pipe structure, well welded, no distortion for whole structure.
3) Adopt Taiwan square orbit, double slippers. Bearing heavy, working steadily high precision, and long life time.
4) Ncstudio control system, connecting with computer during working and easy to control.
5) Software: CAD/DAM designing software e.g. Type3/ARTCAM/Castmate/Ucancam v9 etc.
6) Vacuum Table with 6 vacuum zones, which can adsorb different sizes materials.
7) Adopt high speed stepper motor and drivers, and two motors for Y axis. Max speed is 35M/MIN.Auto Aligning System

Product Application

1.Furniture Industry
2.Decoration Industry
3.Mould Industry
4.Craft Industry
5.Advertising Industry

6.Musical Instrument Industry

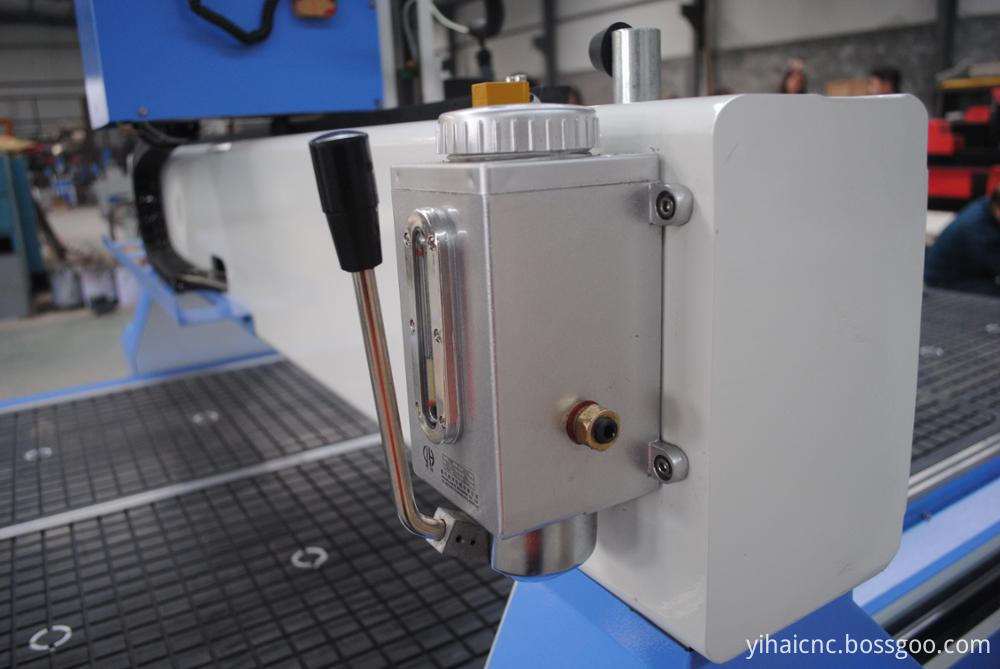

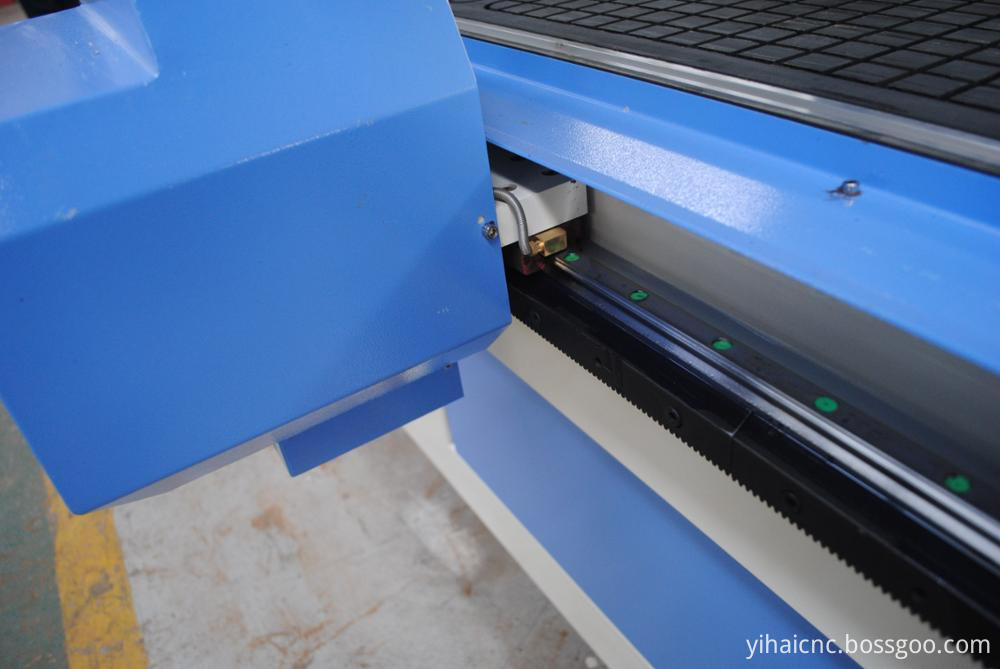

Detailed Images

Htb1b4y0j3atbunjsszfq6xgfpxak

CNC Router With Auto Tool Sensorl

1325 Wood Engraving Machine

Sample
